SPRINZ System Classic
System Classic

Gleaming colours and pin-sharp motifs on elegant glass


Rear panel vitrification with glass
Safety glass – robust and printed with motifs

With System Classic by Sprinz, you can create a single-colour shower rear panel or one with printed motifs. You can select motifs from the Sprinz motif catalogue. My bathroom – my image: As the slogan indicates, your favourite image will be printed in maxi format up to 3.200 x 1.600 mm (UV digital printing) or 3.700 x 2.200 mm (ceramic screen printing). Smooth and hygienic, the break-proof toughened safety glass can be easily cleaned. The elements can either be attached directly to old tiles and brickwork with silicone or can be installed quickly and flawlessly on the wall almost invisibly thanks to the patented profile system. Holes or cut-outs are possible, depending on technical feasibility. Ideal for all those who wish to renovate or modernise and also perfect as a quick solution in a new building.



Technical details

  • 8 or 10 mm break-proof toughened safety glass made of white glass
  • UV digital printing dimensions up to 3.200 x 1.600 mm
  • Ceramic screen printing dimensions: up to 3.700 x 2.200 mm
  • Weight: about 20 kg per m²
  • Optionally reversible mounting system
  • System Classic attached directly to the wall with adhesive
  • All processing such as drill holes or cut-outs possible, depending on whether they are technically feasible
  • Hygienic smooth surface without joints
  • Polished edges (standard)
  • Thermally resistant and easy to clean
  • Gleaming colours, pin-sharp motifs
  • Single RAL colour or motif collection
  • Special motifs can be acquired on different portals online


Fastening without mounting system


Anschlussmoeglichkeit Duschkabine mit Wandwinkel
Shower unit with wall bracket

Connection option shower unit with wall bracket

Anschlussmoeglichkeit Duschkabine mit Wandprofil
Shower unit wall profile

Connection option shower unit with wall profile



Fastening systems

SPRINZ Classic Standardbefestigungssystem EN.jpg
Standard fastening system

Fastening profiles are affixed along the entire length of glass edges above and below at the factory. Quick, flawless and almost invisible thanks to patented profile system Suitable for full-height wall glazing

SPRINZ Classic Magnetbefestigungssystem.jpg
Magnetic fastening system

Two rails are screwed onto the upper and lower edge on the wall. The counter-pieces are adhered to the rear of the glass panel at the right height with a magnet in the factory. This system is suitable for shower units where the upper edge of the shower and that of the wall glazing must be flush.



Side trim

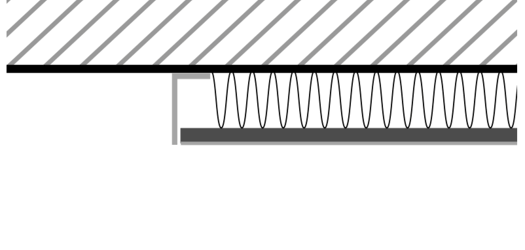

seitliche und obere abschluesse mit alu profil.png
Side and top trims

Side and upper trims with aluminium profile in EV1 (standard)

befestigungssystem mit wandprofil.png
Wall profile fastening system

Fastening system with wall profile (for partially framed showers)



Overview of screen print patterns

Pure white 9010
Graphite black 9011
Grey aluminium 9007
Ruby red 3003
Light ivory 1015
Yellow green 6018

Green beige

RAL 1000

Ivory

RAL 1014

Oyster white

RAL 1013

Olive yellow

RAL 1020

Colza yellow

RAL 1021

Traffic yellow

RAL 1023

Carmine red

RAL 3002

Purple red

RAL 3004

Wine red

RAL 3005

Black red

RAL 3007

Brilliant blue

RAL 5007

Turquoise blue

RAL 5018

Capri blue

RAL 5019

Ocean blue

RAL 5020

Pastel blue

RAL 5024

Patina green

RAL 6000

Olive green

RAL 6003

Bottle green

RAL 6007

Black olive

RAL 6015

Pastel green

RAL 6019

Olive drab

RAL 6022

Mint turquoise

RAL 6033

Pastel turquoise

RAL 6034

Squirrel grey

RAL 7000

Silver grey

RAL 7001

Moss grey

RAL 7003

Signal grey

RAL 7004

Mouse grey

RAL 7005

Beige grey

RAL 7006

Green grey

RAL 7009

Iron grey

RAL 7011

Basalt grey

RAL 7012

Slate grey

RAL 7015

Anthracite grey

RAL 7016

Black grey

RAL 7021

Umbra grey

RAL 7022

Concrete grey

RAL 7023

Graphite grey

RAL 7024

Stone grey

RAL 7030

Blue grey

RAL 7031

Pebble grey

RAL 7032

Light grey

RAL 7035

Platinum grey

RAL 7036

Dusty grey

RAL 7037

Agate grey

RAL 7038

Quartz grey

RAL 7039

Window grey

RAL 7040

Traffic grey A

RAL 7042

Traffic grey B

RAL 7043

Silk grey

RAL 7044

Telegrey 1

RAL 7045

Telegrey 2

RAL 7046

Telegrey 4

RAL 7047

Nut brown

RAL 8011

Sepia brown

RAL 8014

Chestnut brown

RAL 8015

Mahogany brown

RAL 8016

Chocolate brown

RAL 8017

Grey brown

RAL 8019

Pale brown

RAL 8025

White

RAL 9003
RAL 9010
RAL 9016

Black

RAL 9004
RAL 9005
RAL 9011
RAL 9017

Papyrus white

RAL 9018

More colours...

... can be ordered freely from the RAL CLASSIC colour system. Sample compulsory (at extra cost).



Overview of 2-colour screen print patterns

1201 Blattstrucktur sd Fotolia 102728064.jpgLeaf structure 1201
1203 Meissen sd 2018 11 09 16 04 49.jpgMeissen 1203
1205 Southhampton sd 2018 11 09 16 05 43.jpgSouthampton 1205


More colours...

... can be ordered freely from the RAL CLASSIC colour system. Sample compulsory (at extra cost).



World of Motifs

4011 Wellensturm shutterstock 318681374 print WEB 2018 11 15 10 09 26 2019 01 21 12 47 12.jpg

Gleaming, photo-realistic motifs are not only a real eye-catcher, but also give bathrooms a unique vibrancy. Choose your favourite motif from the extensive Sprinz motif catalogue. Sprinz will also print your own template on request. High-grade printing methods ensure a perfect visual effect and a long life cycle. Select your ideal image from the motif catalogue. Cut-outs can be adjusted for any pattern if the x and y coordinates are indicated.
