Point-fixed glass canopy

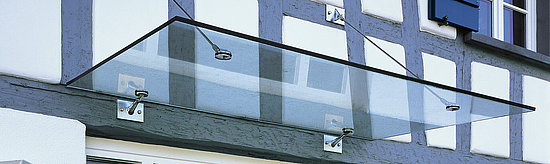

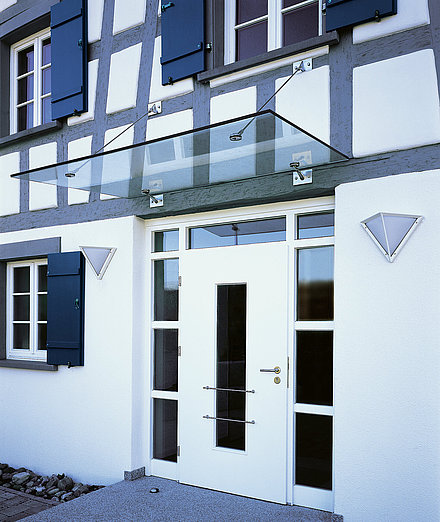

The canopy made of glass and stainless steel is available from SPRINZ as a complete system with SpriPoint 70 point fixings. The point fixings appear light, almost weightless and floating.
The canopy system is particularly impressive due to the harmonious combination of filigree fittings and glass. The laminated safety glass VSG is made from two TVG mono panes with a highly tear-resistant film. Should the glass break, the residual stability of the film secures the glass and prevents it from breaking away.
Technical details
Type A
- Max. Glass panel dimensions: 2100 x 1250 mm
- Glass type: VSG 16 made of 2 x TVG 8 mm
- Point support: SpriPoint 70, stainless steel
- Brackets: Stainless steel 100 x 150 mm with 2 holes
Type B
- Max. Glass panel dimensions: 3000 x 1400 mm
- Glass type: VSG 20 made of 2 x TVG 10 mm
- Point holder: SpriPoint 70, stainless steel
- Brackets: Stainless steel 100 x 150 mm with 2 holes
- 2 tension-compression rods: stainless steel d=10 mm with clevises
- Fixing the brackets: Masonry - Hilti Hit M10; Concrete C25/30 (B25) - Hilti Hit HST M8
- Permissible snow load: 0.75 kN/sqm
- 3 tension-compression rods: stainless steel d=14 mm with clevises
- Fixing the brackets: Masonry - Hilti Hit M10; Concrete C25/30 (B25) - Hilti Hit HST M8
- Permissible snow load: 1.15 kN/sqm
Linear canopy

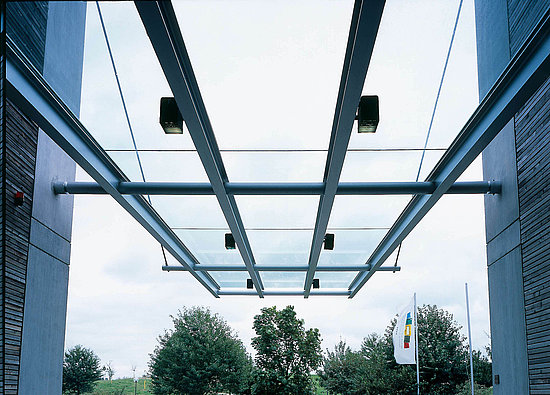

Canopies made of glass are traditionally mounted in lines to guarantee more stability for larger glass surfaces. The combination of safety glass and metal from SPRINZ is particularly suitable for modern buildings. Plan a glass canopy up to a maximum format exactly to measure. For linear mounted glass canopies, the TRLV (Technical Rules for the Use of Linear Mounted Glazing) must be observed.
